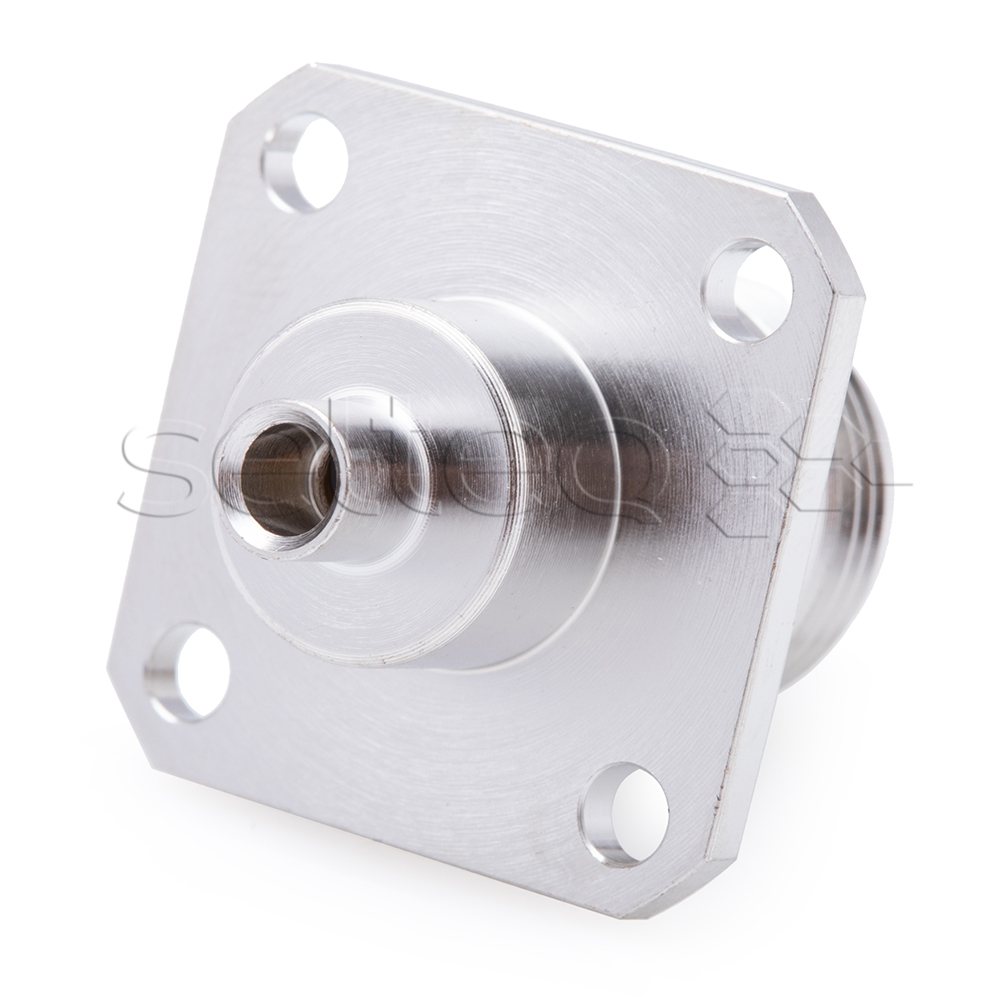

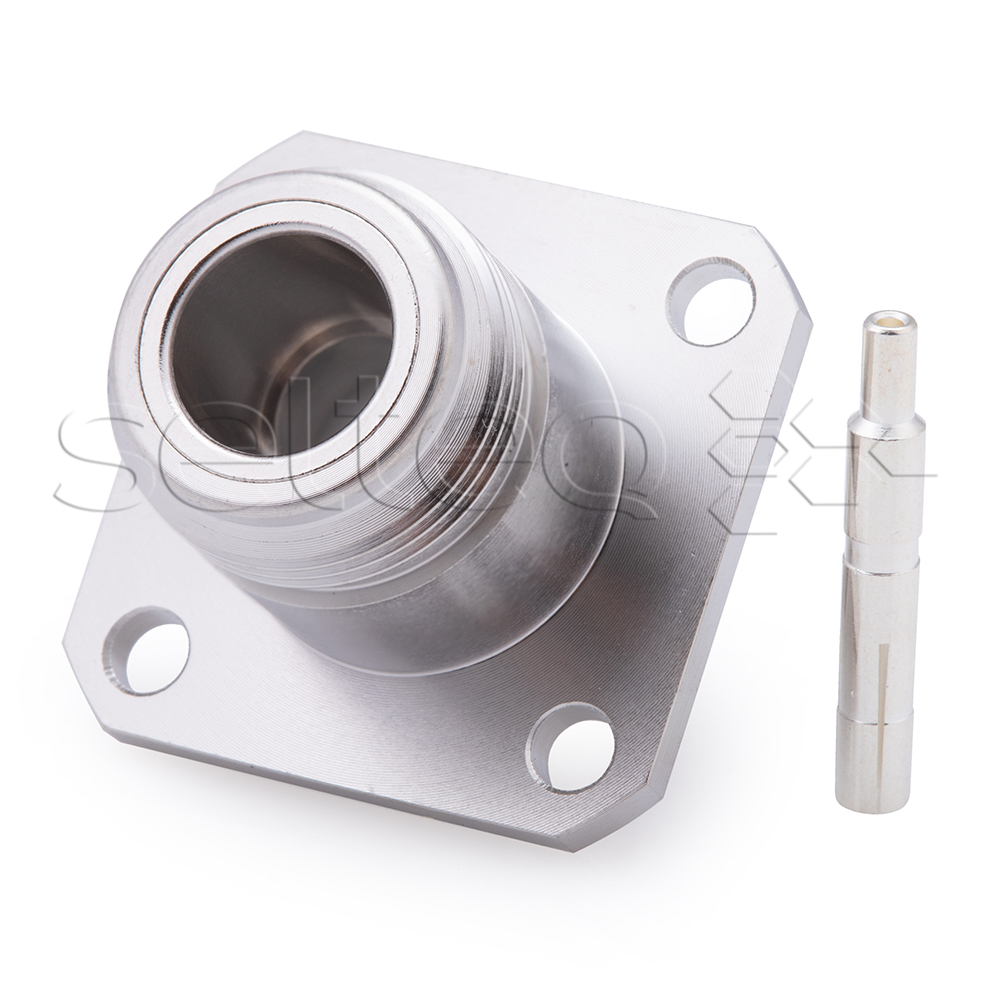

N female, panel connector, G10 (SSF-141)

N female connector, panel mounting, 4 holes, solder

Materials and coating

Center contact: CuBe2, CuNi1Pb1P(C97)
Outer contact and housing: CuZn39Pb3
Dielectric: PTFE

Electrical specifications

Wave impedance: 50 ohm
Center contact resistance: ≤ 1,5mΩ
Outer contact resistance: ≤ 1mΩ

Environment and mechanical properties

Number of connection cycles: ≥500

Compatibility

The connector is compatible with semi-flexible cables belonging to the G10 cable group:
- SSF-141
— EZ 141
— 1673A
— RG-402/U
— SUCOFORM 141
- UT-141
— Flexiform 402
